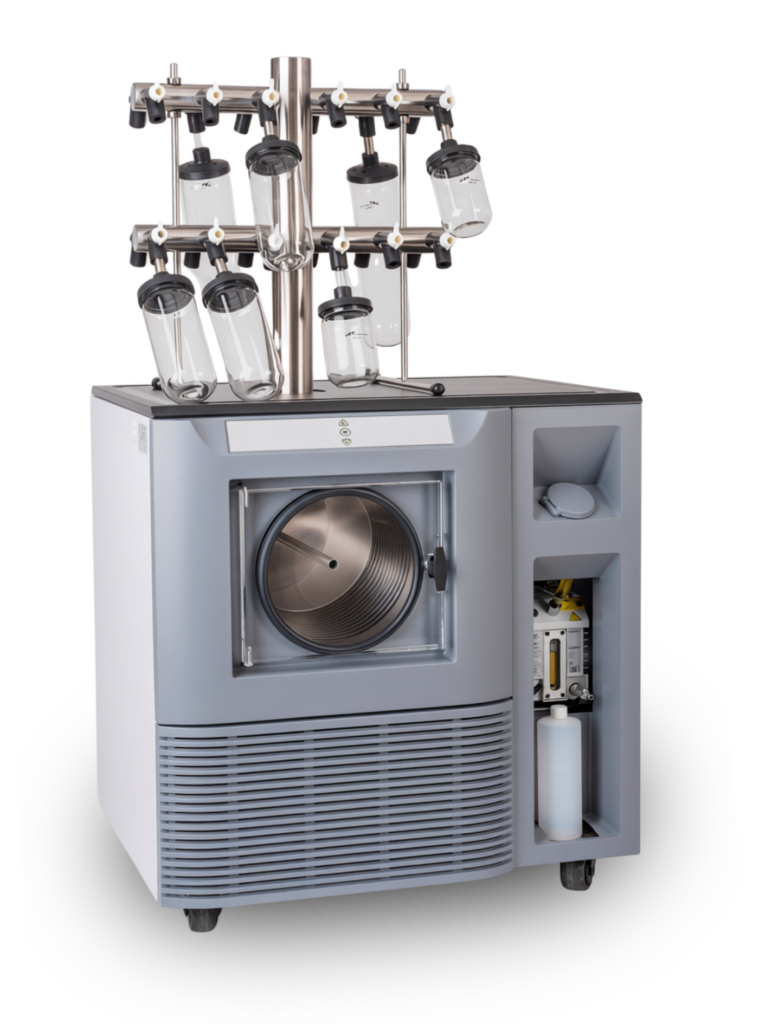

The SP VirTis Freezemobile 25L is a research freeze dryer in a compact, freestanding, mobile design. It includes the microprocessor-based Sentry 2.0 controller, and its strength is manifold flexibility — which makes it well suited to research where samples sit in round-bottom flasks of varying size and the number of flasks changes from run to run.
Key features
- Compact, freestanding, mobile design
- Microprocessor-based Sentry 2.0 controller
- A wide variety of optional manifolds, shelves and accessories
- Optional filter traps to protect the vacuum pump from corrosive solvents
- 316L stainless steel condenser chamber, hot gas defrost, CFC-free refrigerant
Optional manifolds
- Vertical manifold assembly — 4-, 8-, 12-, 24- or 48-port stainless steel
- Horizontal “T” manifold — 1-, 2- or 3-tier stainless steel
Additional standard and custom accessories are available, along with flask adapters, glassware and other components.
Specifications
| Item | Value |
|---|---|
| Lowest condenser temperature (50 / 60 Hz) | -82 °C / -85 °C |
| Lowest freezing temperature with optional shelf bath | -67 °C / -70 °C |
| Maximum condenser capacity | 25 L |
| Condenser surface area | 506 in² (3,264 cm²) |
| Maximum ice condensing capacity in 24 hours | 12 L |
| Maximum deposition rate | 0.5 L/hour |
| Condenser pull-down from 20 °C to -45 °C | ≤ 25 minutes |
| Number of compressors | 2 (1.0 + 1.0 hp) |
| Vacuum time to 100 mTorr | ≤ 20 minutes |
| Average defrost time | ≤ 60 minutes |
| Dimensions (W × D × H) | 89 × 74 × 94 cm, 127-225 kg |
| Approx. peak heat generated | 8,500 BTU/h (2.5 kW) |
| Vacuum pump | Two-stage rotary vane (required, not included) |
Manufacturer’s note: the specified maximum ice condensing capacity in 24 hours and maximum deposition rate are based on freeze-drying water as aggressively as possible. The freeze dryer’s ability to collect ice over a given period will always be application dependent.
SP VirTis Freezemobile 25L is available in Thailand from Thai Unique, with installation, calibration and after-sales service handled by our own team here in the country. For details and a quotation, call 0-2629-0191-6 or email customer.service@thaiunique.com.
All specifications are taken from the manufacturer’s own documentation and are based on units operating at an ambient room temperature of approximately 20 °C; SP recommends an operating range of 15-25 °C. SP VirTis reserves the right to change specifications without notice.
