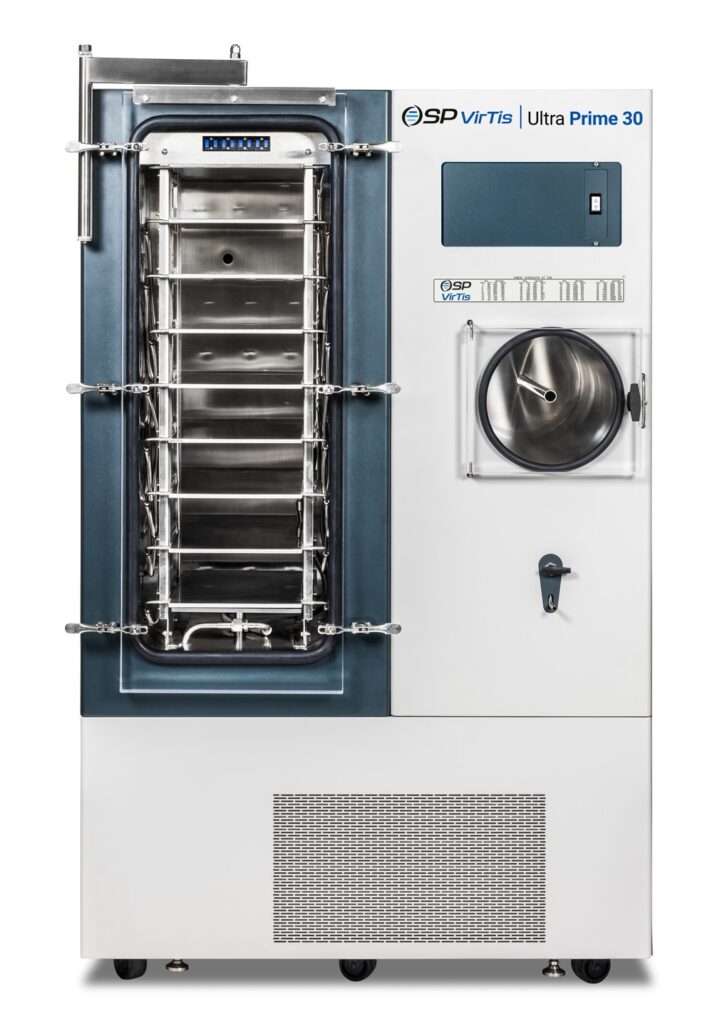

The SP VirTis Ultra Prime 30 is a freeze dryer engineered for performance, repeatability and sustainability. What separates it from earlier designs is the direct vapor port, engineered to mitigate choked flow so vapour transfers more smoothly from the product chamber to the condenser and drying is more efficient.
Key features and benefits
- Direct vapor port design — engineered to mitigate choked flow, delivering smoother vapor transfer and more efficient freeze-drying.
- Space saving footprint — multiple standard layout options minimize overall footprint without compromising performance.
- Advanced LyoLogic HMI interface — precise control, simplified operation and improved repeatability.
- Enhanced cycle efficiency — helping reduce energy consumption, operating costs and environmental impact.
- Efficient cleaning and maintenance — smooth-walled condenser and easy defrost system minimize turnaround time.
- Customizable configurations — bulk or stoppering layouts, up to 15 shelves, solvent packages, and cleanroom installations; latch one or multiple shelves in seconds when changing container sizes.
- Lower GWP refrigerants — R1270 (GWP 2) and R170 (GWP 5.5), CFC-free.
Specifications
| Item | Value |
|---|---|
| Lowest shelf temperature (50 / 60 Hz) | ≤ -67 °C / -70 °C |
| Shelf temperature control range | -55 to 65 °C (tolerance ± 0.5 °C) |
| Condenser temperature | down to -85 °C |
| Vacuum level control range | 0.067 – 0.67 mbar (50 – 500 mTorr) |
| Volume-based leak rate | ≤ 0.0042 mbar·L/sec (≤ 3.2 mTorr·L/sec) |
| Lowest system vacuum | ≤ 0.2 mbar (≤ 15 mTorr) |
| Temperature uniformity | ± 1.0 °C |
| Construction | 316L stainless steel shelves, product chamber and condenser chamber |
| Vapor port | 15.2 cm (6 in) wide · 20.3 cm (8 in) narrow / cleanroom |
| Noise level | 75 dBA |
| Max. weight | 909 kg (narrow / cleanroom) |
Shelf configuration and vial capacity
| Shelves | Clearance with one shelf latched | Recommended vials |
|---|---|---|
| 5 shelves | 166.5 mm | 100H or smaller |
| 7 shelves | 115.2 mm | 100H or smaller |
| 8 shelves | 99.2 mm | 30R or smaller |
| 10 shelves | 76.8 mm | 20R or smaller |
| 12 shelves | 61.9 mm | 8R or smaller |
| 13 shelves | 56.2 mm | 6R or smaller |
| 15 shelves | 47 mm | 2R or smaller |
Estimated vial capacity per 10 × 20 in tray: 2R = 519 · 6R = 264 · 10R = 220 · 20R = 144 · 30R = 144.
SP VirTis Ultra Prime 30 is available in Thailand from Thai Unique, with installation, calibration and after-sales service handled by our own team here in the country. For details and a quotation, call 0-2629-0191-6 or email customer.service@thaiunique.com.
All specifications are taken from the manufacturer’s own documentation and are based on units operating at an ambient room temperature of approximately 20 °C; SP recommends an operating range of 15-25 °C. SP VirTis reserves the right to change specifications without notice.
