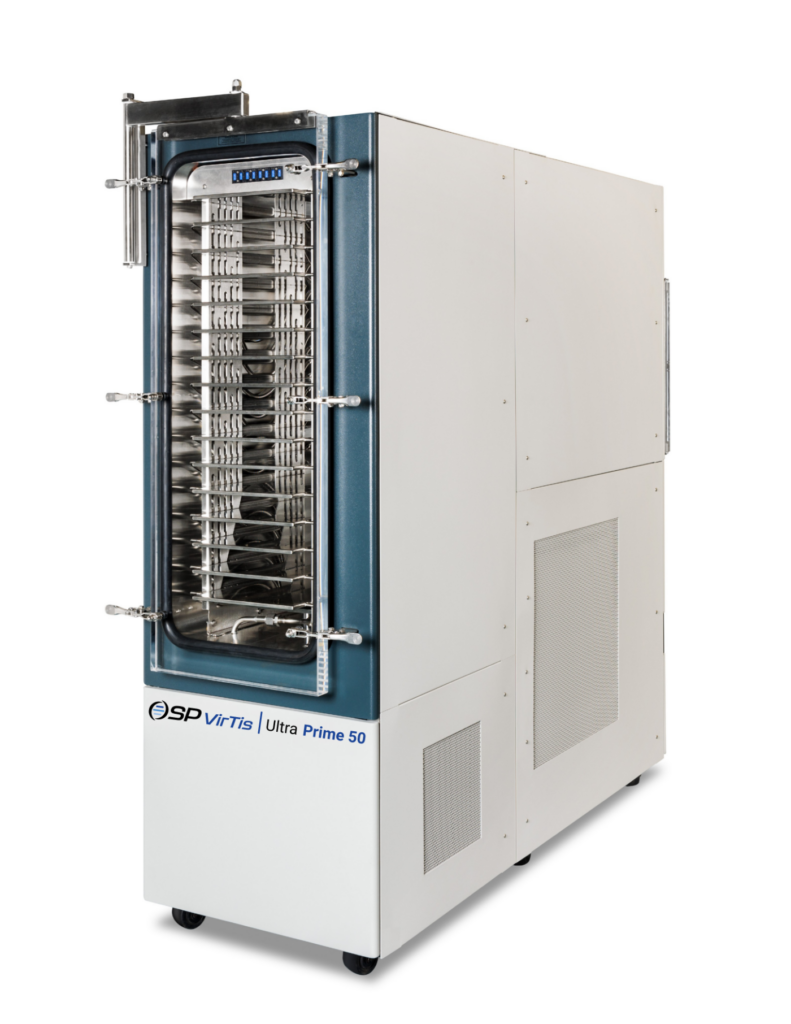

The SP VirTis Ultra Prime 50 combines the power and reliability of a VirTis freeze dryer with a compact, configurable design. It is aimed at small-batch production, diagnostic kit manufacturing and tissue banking. The single product chamber supports larger batches while maintaining uniform product quality across shelves.
Key features and benefits
- Single product chamber supporting larger batches while maintaining uniform product quality across shelves.
- Innovative condenser baffle that can be modified based on your application.
- Free-standing mobile design that fits into labs or cleanrooms with limited space.
- Versatile control options — Merlin or LyoLogic HMI, with LyoLogic also available in a 21 CFR capable version.
- Smooth-walled condenser and easy defrost system minimize turnaround time and simplify cleaning.
- Customizable configurations — bulk or stoppering layouts, up to 15 shelves, solvent packages and cleanroom installations.
- Lower GWP refrigerants — R1270 (GWP 2) and R170 (GWP 6), CFC-free.
Specifications
| Item | Value |
|---|---|
| Lowest shelf temperature (50 / 60 Hz) | ≤ -67 °C / -70 °C |
| Shelf temperature control range | -55 to 65 °C (tolerance ± 0.5 °C) |
| Condenser temperature | down to -85 °C |
| Vacuum level control range | 0.067 – 0.67 mbar (50 – 500 mTorr) |
| Volume-based leak rate | ≤ 0.0042 mbar·L/sec (≤ 3.2 mTorr·L/sec) |
| Lowest system vacuum | ≤ 0.2 mbar (≤ 15 mTorr) |
| Temperature uniformity | ± 1.0 °C |
| Construction | 316L stainless steel shelves, product chamber and condenser chamber |
| Vapor port | 20.3 cm (8 in) |
| Noise level | 75 dBA |
| Max. weight | 909 kg |
| Peak room heat output | 22,900 BTU/h (6.7 kW) air-cooled · 5,400 BTU/h (1.6 kW) water-cooled |
Shelf configuration and vial capacity
| Shelves | Shelf clearance | Recommended vials |
|---|---|---|
| 8 shelves | 99.2 mm | 30R or smaller |
| 10 shelves | 76.8 mm | 20R or smaller |
| 12 shelves | 61.9 mm | 10R or smaller |
| 14 shelves | 51.3 mm | 6R or smaller |
| 15 shelves | 47.0 mm | 2R or smaller |
Shelf size (W × D): 274.3 mm × 520.7 mm · Estimated vial capacity per 10 × 20 in tray: 2R = 519 · 6R = 264 · 10R = 220 · 20R = 144 · 30R = 144.
SP VirTis Ultra Prime 50 is available in Thailand from Thai Unique, with installation, calibration and after-sales service handled by our own team here in the country. For details and a quotation, call 0-2629-0191-6 or email customer.service@thaiunique.com.
All specifications are taken from the manufacturer’s own documentation and are based on units operating at an ambient room temperature of approximately 20 °C; SP recommends an operating range of 15-25 °C. SP VirTis reserves the right to change specifications without notice.
